The Texas Fireframe® grate comes in five sizes, and each size comes in two weights. Our Standard size grate fits most fireplaces. Please consult our measurement page to ensure that you select the right grate for your fireplace. If you need some advice, send us your dimensions or give us a call at (877) 806-6464 or (917) 626-4007. We’d be glad to advise you. Remember: The depth of your fireplace should be at least 3″ greater than the depth of the grate you choose.

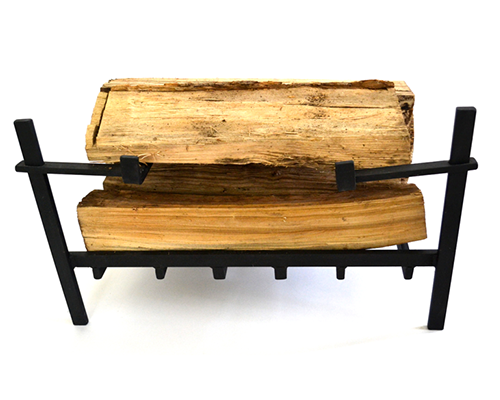

All of our grates are made in the U.S.A. of hot rolled steel, welded bars, and include slip-on, height-adjustable, friction-locking arms. Fully-assembled. Instructions included.

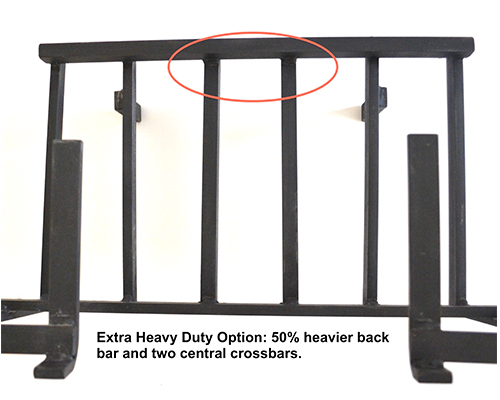

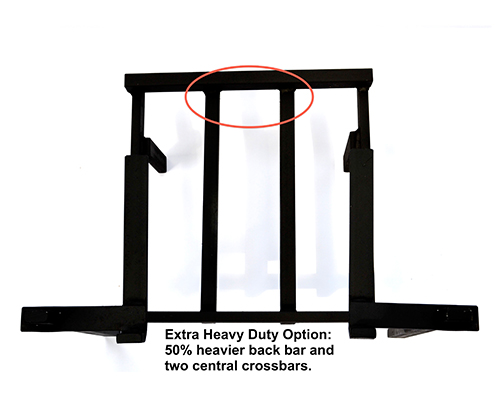

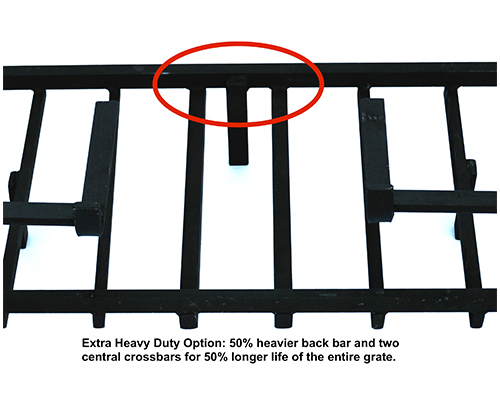

In addition to our classic grate which lasts many years and suits the needs of the majority of our customers, we also offer extra heavy duty grates in all sizes. By adding extra steel to just three bars, we’ve made the entire grate last 50% longer.  Determine if an Extra Heavy Duty grate is right for you.

Our fire grates are compatible with most gas lighters. Generous 3 ½” of clearance beneath all models except our Compact SL which has 2 1/2″ clearance. We can add leg height.

Your satisfaction is guaranteed or you can return the Texas Fireframe grate for any reason within 30 days. (Refunds are for invoiced amount, less shipping. Guarantee excludes custom orders.)

Shipping time is usually 3-5 days from your order date. All grates are shipped UPS ground. All finials and pedestal bases are shipped separately by the U.S. Post Office, Priority Mail. Contact us if the finials should be shipped to a P.O. Box.

Shipping cost is a flat rate for all 50 states. Scroll to the bottom of this page for flat shipping rates.  Your grate arrives unboxed via UPS. By eliminating a box and packing materials, we’re kinder to the environment. Canada Residents: We do not ship to Canada, but we can arrange for you to receive a grate near the border in the U.S. Contact us before you place an order.

Your Texas Fireframe grate will be delivered by UPS. Finials and pedestal bases are delivered separately via the US Post Office.  Contact us if you wish to provide a P.O. Box for finials/bases.

Custom Orders: Every dimension of the Texas Fireframe grate can be customized. We make deeper grates for two-sided fireplaces.

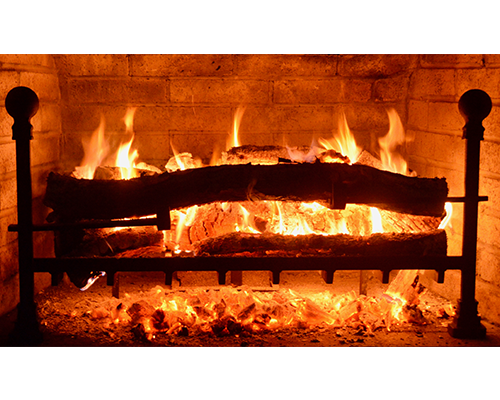

Our new add-on finials and pedestal base turn the uprights on your grate into elegant andirons. All styles fit every size grate.  Learn more about our finials here.

17 inch - Efficient Fireplace Grate

           Compact

25 inch - Hotter Fire Grate

           Standard

33 inch - Fireplace Grate

           Large

You can Use Paypal or any major credit card

Finials and Pedestal Bases

All styles fit all sizes of grates.

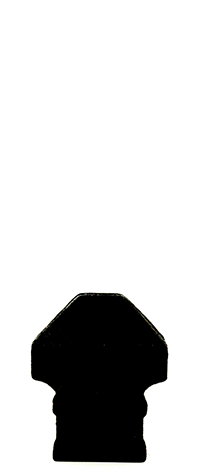

Mission finials add 2” to height of grate.

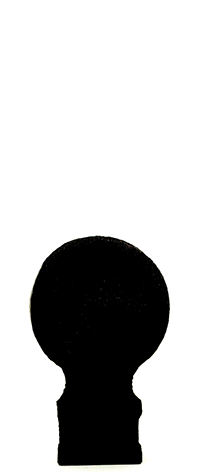

Ball finials add 3″.

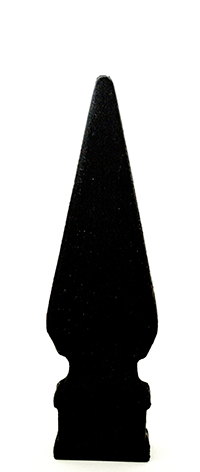

Tudor finials add 5”.

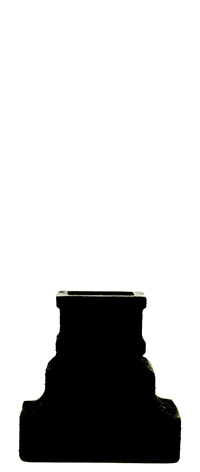

Pedestal Bases add no height to grate, and they coordinate with every style of finial.
Each accessory is held securely in place with a hidden set screw; finial styles are interchangeable.

Shipping is $10 for finials or finials + bases.
$14 shipping for ball finials/bases.

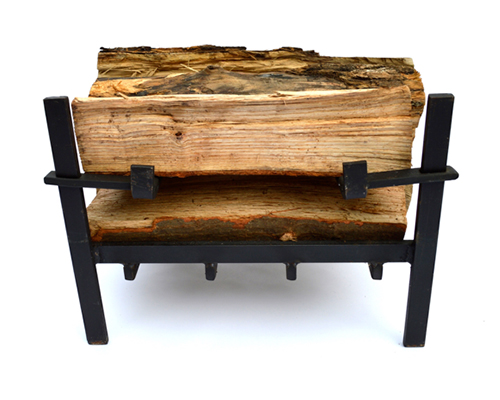

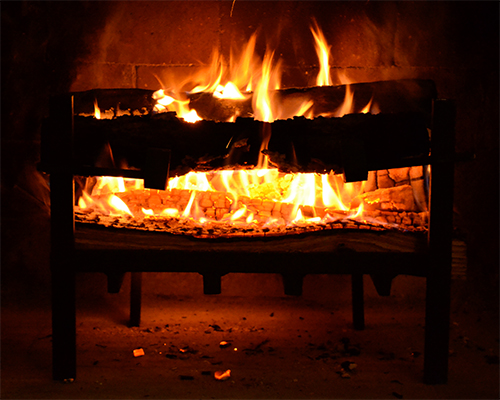

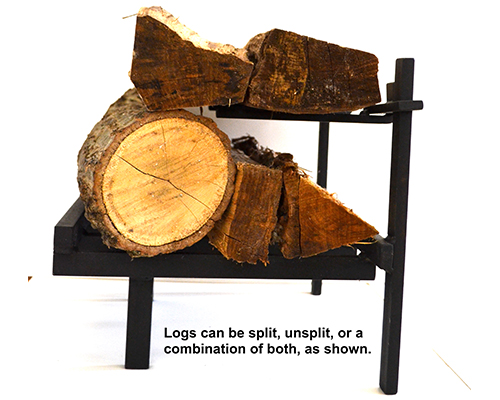

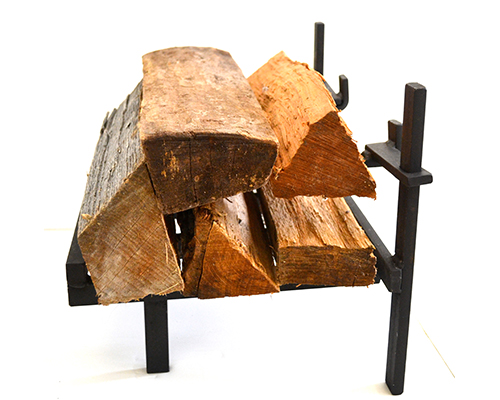

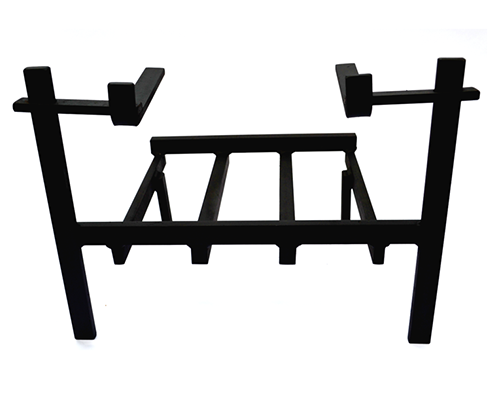

Compact grate

18” wide in front, 14 1/4” deep,
13” wide in back, 13” high. 19 lbs.
(Extra heavy duty: 22 lbs.)
For small fireplaces using logs
12 to 18” long. Shipping $30.
Distance between upper arms: 7”

Compact

$115





Click images to enlarge




Compact SL grate (Shallower/Lower)

18” wide in front, 11 ¼” deep.
13” wide in back, 12” high
(legs are 1” shorter) 17 lbs.
(Extra heavy duty: 20 lbs.)
For small fireplaces. Measurement to
flue opening from floor of fireplace
should be at least 20 inches. Shipping $30.

Compact SL

$115




Pixel

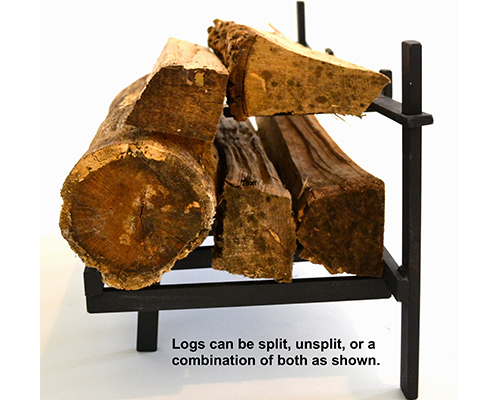

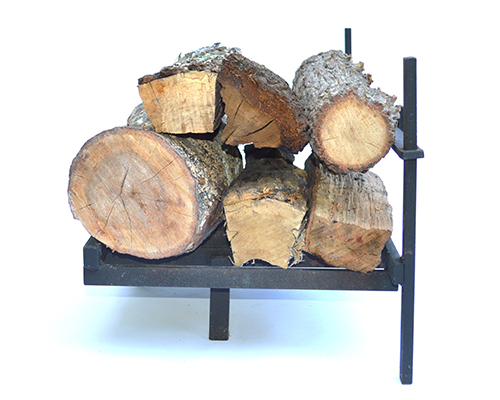

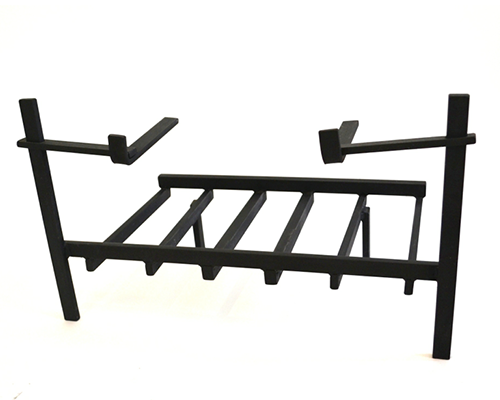

Standard grate

26” wide in front, 14 1/4” deep,
21” wide in back, 15” high. 27.5 lbs.
(Extra heavy duty: 30 lbs.)
For standard fireplaces using logs up to
2 feet long. Shipping $40.
Distance between upper arms: 10”

Standard

$140





Click images to enlarge

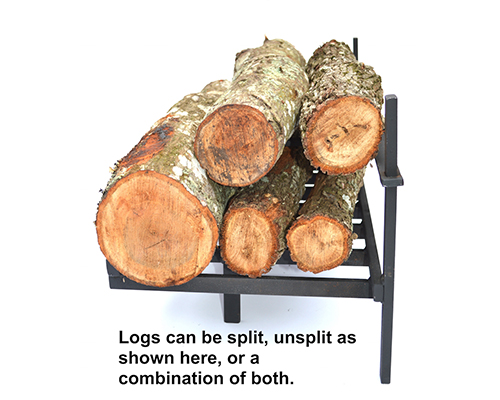

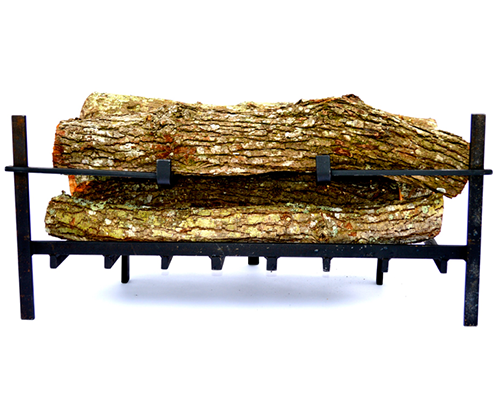

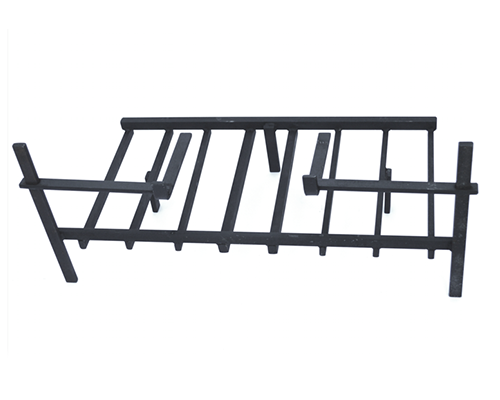

Large grate

34” wide in front, 16 1/4” deep,
29” wide in back, 15” high. 35.5 lbs.
(Extra heavy duty: 40 lbs.)
For large fireplaces using logs
up to 34″. Shipping: $45.
Distance between upper arms: 11.5”

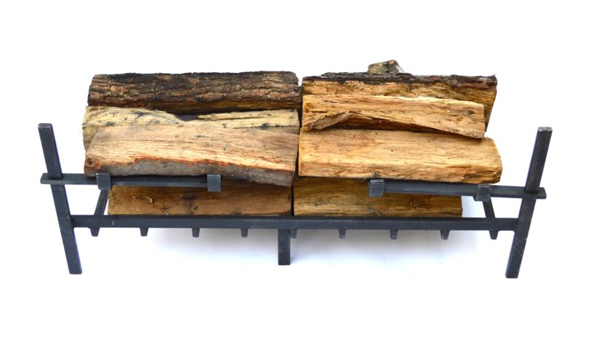

If you have short logs, 16” or less, you can order double arms (see custom below) which allow you to put logs end to end, top and bottom, filling the grate. You can also enjoy a smaller fire in the center of your large grate.

Large

$180





Click images to enlarge

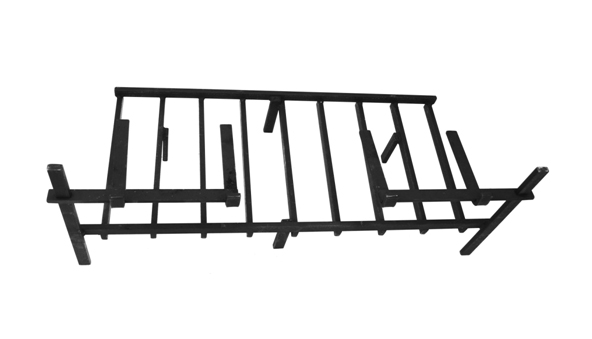

Extra Large grate

40” wide in front, 16 ¼” deep
35” wide in back, 15” high, 40 lbs.
(Extra Heavy Duty:: 45 lbs.)
Shipping: $50.
Distance between upper arms: 11.5”

For extra wide fireplaces. Note: Grate has double
arms for placing small logs stacked end to end, or large logs up to 38” can be used. For a smaller fire, center shorter logs. Contact us if you prefer single arms as shown on other grates.

Extra Large

$210





Click images to enlarge

Extra charge for customizing your grate in any size. Please contact us first to determine this cost. Click on “Add to cart” below, then change the quantity to equal the cost provided to you. Each customization is $20. Contact us to confirm price.

$20 Customization




























































































































































$25  Log Retainers

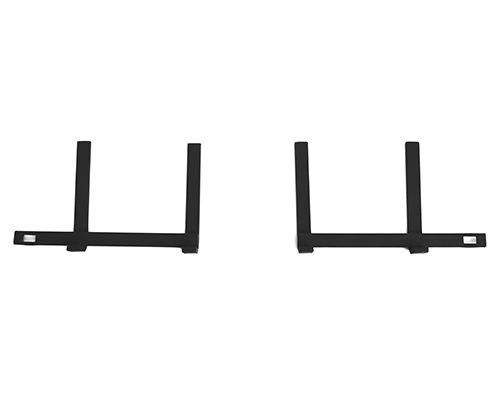

$25 Double Arms (for large grates only)



$5 Extra coat of paint if your grate will be used in an outdoor fireplace.



























































































Flat shipping/handling for all three fireplace grates:

(Compact is $30; Standard is $40; Large is $45. Extra Large is $50.)

Flat rate for finials: $10/pair. Exception: Ball Finials: $14/pair Pedestal bases are shipped free with finials.
